commercial/mixed-use development

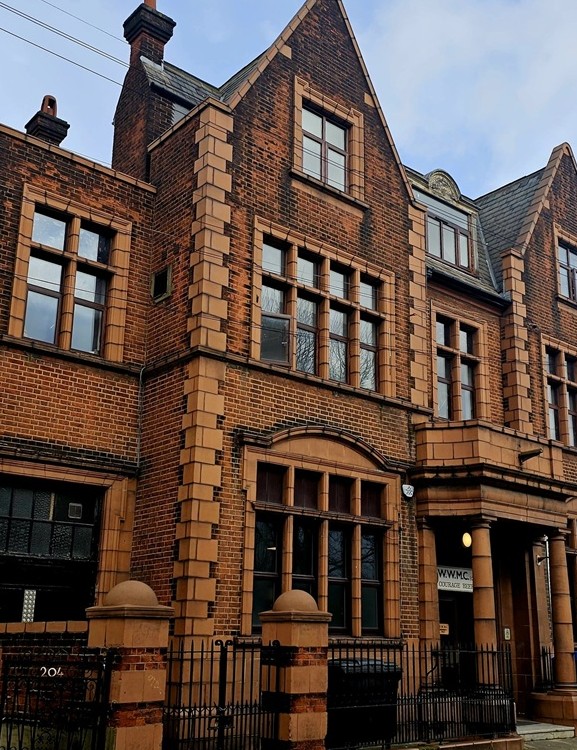

Villiers Road, London, NW2 5PU
Proposal

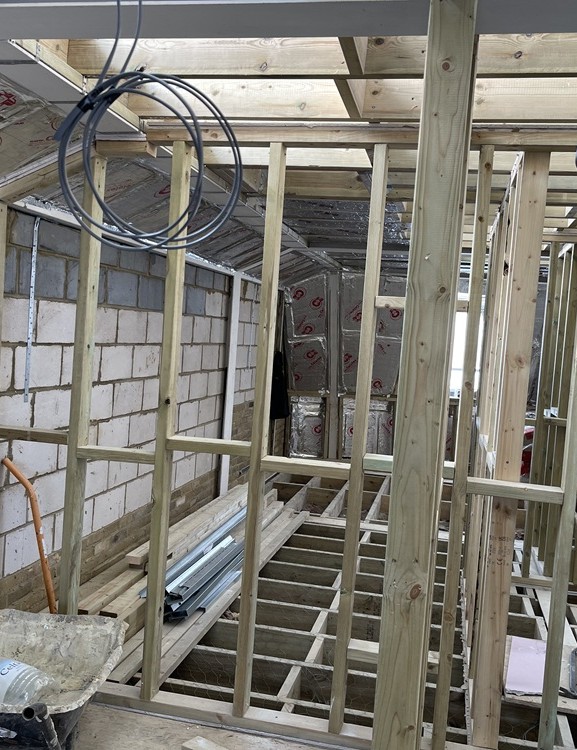

The project involves retaining the existing ground floor for club use, while converting the upper floors to create seven self-contained flats comprising 1 one-bedroom unit, 3 two-bedroom units, and 3 three-bedroom units. The proposal includes the creation of a mezzanine level within the rear hall, along with associated rear and side elevation windows and rooflights. Additional works include a first-floor side infill extension, replacement of the front entrance door, and the provision of cycle parking spaces and bin stores.
Location
NW2 5PU
Category
Commercial
Client
Working Men's Club
Service
We provided a full structural design service for this project, which included a structural survey of the existing property and intrusive investigations of existing structural elements. Our scope covered the development of a concept design followed by the preparation of a detailed structural design.

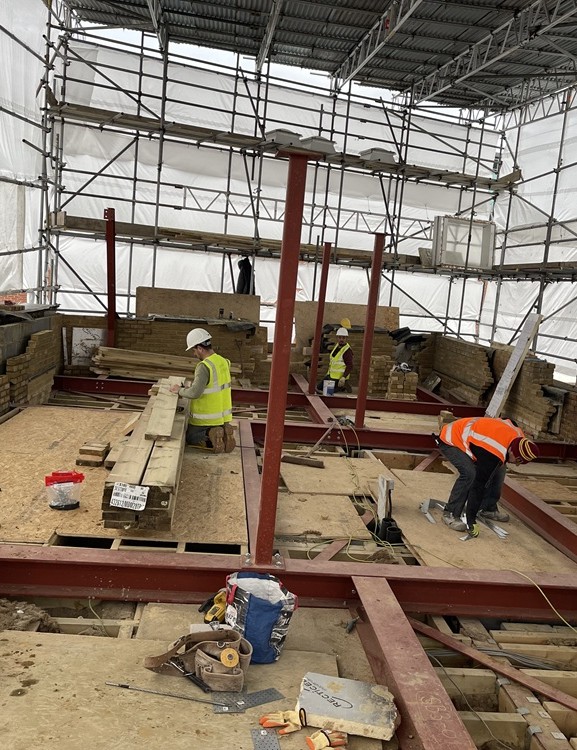

One of the client’s key requirements was to avoid any piers or columns in the main hall area on the ground floor. To achieve this, we designed a floating mezzanine floor supported by full storey-height transfer trusses spanning approximately 12 meters between the main load-bearing walls. As part of our design, we also strengthened the existing main roof structure. This approach enabled significant cost savings for the client and reduced construction waste.
